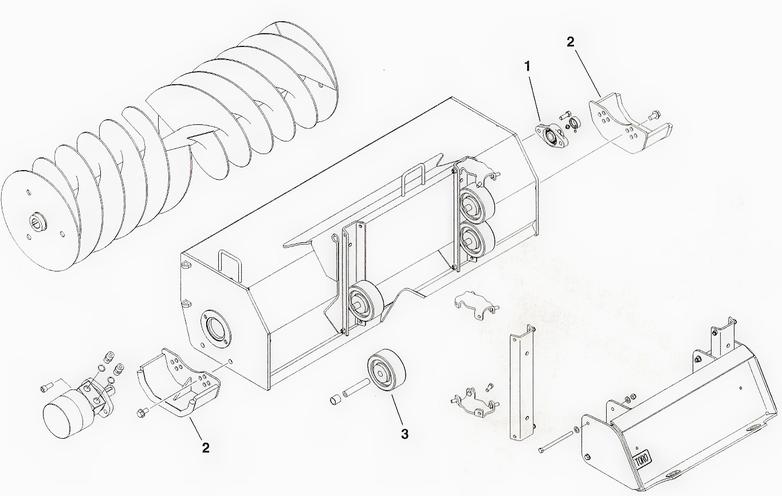

Toro Dingo Trencher Attachment Parts Diagram
Reference Part
Number Number
1 104-1997
2 104-1998
3 99-4328
3 104-1996
4 100-1699
5 104-1949
6 115-0781
7 104-1951
8 99-4355
8 104-1995
9 104-1964
10 104-1948
11 104-5889
12 106-7626
12 99-5931
13 98-8223
13 99-5925
14 98-8224
14 99-5924
15 99-5923
16 99-5923
17 283-72
18 108-5543
18 117-3480
18 117-3481
19 108-5544
20 107-9325
Part
Description
Trencher Boom Assembly
Boom Assembly
Nose Roller
Nose Roller
Trencher Sprocket
36" Boom Assembly
Boom Assembly
Nose Roller
Square Shaft Bearing
Bearing
Trencher Sprocket
24" Boom Assembly
Boom Assembly
4" x 24" Soil Chain ASM
36" Bare Trencher Chain
RH Soil Tooth (98-2000)
RH Soil Tooth
LH Soil Tooth (98-2000)
RH Soil Tooth
Rock Tooth, Right Hand
Rock Tooth, Left Hand
Lynch Pin
6" x 24" Soil Chain Kit
8" x 36" Soil Chain Kit
12" x 36" Soil Chain Kit
6" x 24" Rock Chain Kit
Trencher Roller Assembly
Toro Dingo Trencher Model this part is used on
Used on: 22447
Used on: 22447
Used on: 22447
Used on: 22447
Used on: 22447
Used on: 22470 with a 3 Foot Boom Attached (22961)
22471 with a 3 Foot Boom Attached (22961)
Used on: 22470 with a 3 Foot Boom Attached (22961)
22471 with a 3 Foot Boom Attached (22961)
Used on: 22465
22470 with a 3 Foot Boom (22961) or 2 Foot Boom (22960)
22471 with a 3 Foot Boom (22961) or 2 Foot Boom (22960)
Used on: 22447
22465
22470 with a 3 Foot Boom (22961) or 2 Foot Boom (22960)
22471 with a 3 Foot Boom (22961) or 2 Foot Boom (22960)
Used on: 22447
22465
22470 with a 3 Foot Boom (22961) or 2 Foot Boom (22960)
22471 with a 3 Foot Boom (22961) or 2 Foot Boom (22960)
Used on: 22465
22470
22471
Used on: 22465 with a 2 Foot Boom (22960)
Used on: 22465 with a 2 Foot Boom (22960)
Used on: 22465 with a 2 Foot Boom (22960)
Used on: 22470 with a 3 Foot Boom Attached (22961)
22471 with a 3 Foot Boom Attached (22961)
Used on: 22447
Used on: 22465
22470
22471
Used on: 22447
Used on: 22465
22470
22471
Used on: 22465
22470
22471
Used on: 22465
22470
22471
Used on all trenchers that have a trencher crumbler (22464) attached
Can be used on all trenchers that have a 2 foot boom (22960) attached
Can be used on all trenchers that have a 3 foot boom (22961) attached
Can be used on all trenchers that have a 3 foot boom (22961) attached
Can be used on all trenchers that have a 2 foot boom (22960) attached
Used on: 22465
22470 with a 3 Foot Boom (22961) or 2 Foot Boom (22960)
22471 with a 3 Foot Boom (22961) or 2 Foot Boom (22960)
Reference Part
Number Number
1 99-0160
2 107-9393
3 110-0237
Part
Description
Bearing
Skid Plate Assembly
Float Roller

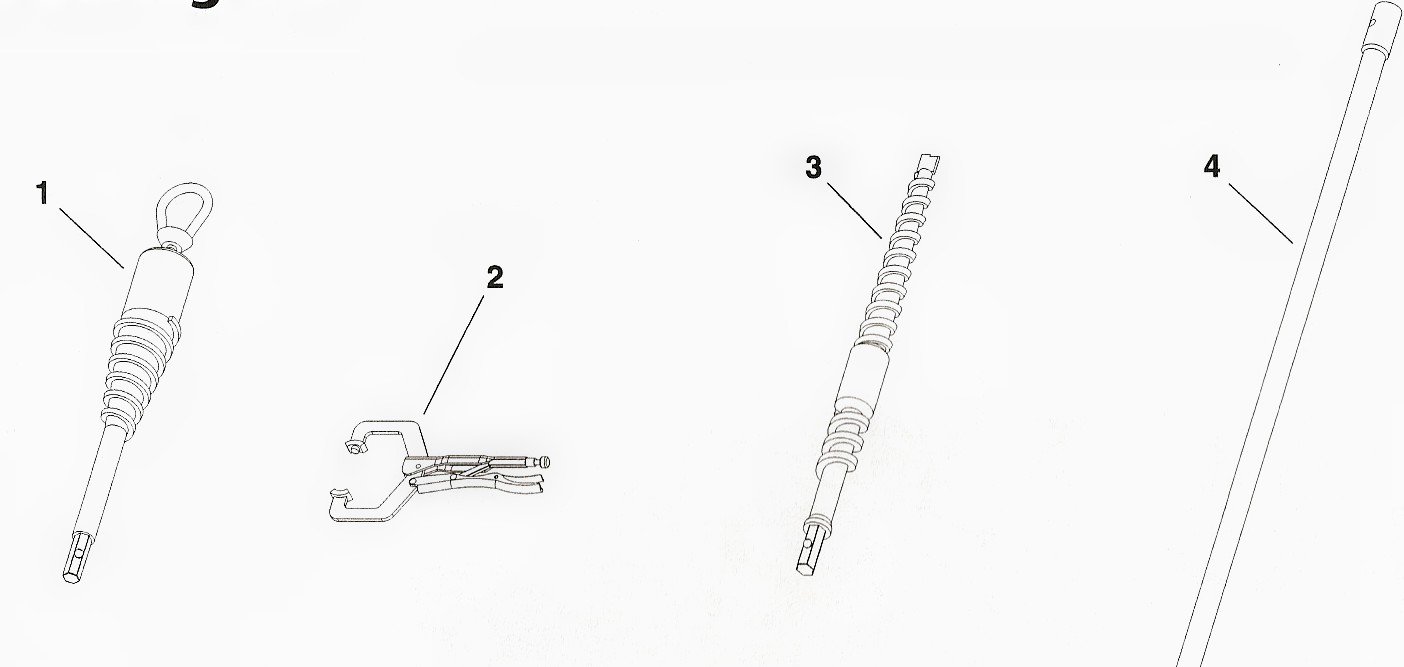

Toro Dingo Bore Head Attachment Parts Attachment (Model 22420)
| ||||||
Reference Part
Number Number
1 100-4756
1 98-8274
1 100-4756
1 100-4758
1 100-4759
1 100-4760
2 98-8276
3 100-4752
3 100-4753
3 98-8273
3 100-4754
3 100-4755
4 98-8278
Part
Description
2" Reamer
2-1/2" Reamer
2-7/8" Reamer
3-1/4" Reamer
3-1/2" Reamer
4-1/2" Reamer
Uncoupling Tool
Boring Bit 1 - 1/4"
Boring Bit 1 - 7/16"
Boring Bit 1 - 3/4"
Boring Bit 2"
Boring Bit 2 - 1/2"
Drill Rod 5 Foot
| ||||||
E&S Equipment, LLC
6799 Kennedy Road Suite E
Warrenton VA 20187
(703) 919-1379
www.esequipmentllc.com
Toro Dingo Trencher Attachment Parts
| ||||||
We Can Get Any Toro Trencher, Trench Filler and Bore Head Drive Attachment Part and Ship Them to You
Please Call Everett to Order Parts or for More Information
703 919 1379
Call 703 919 1379 to get these parts shipped to you!
Toro Dingo Trench Filler Attachment Parts (Model 22472)
