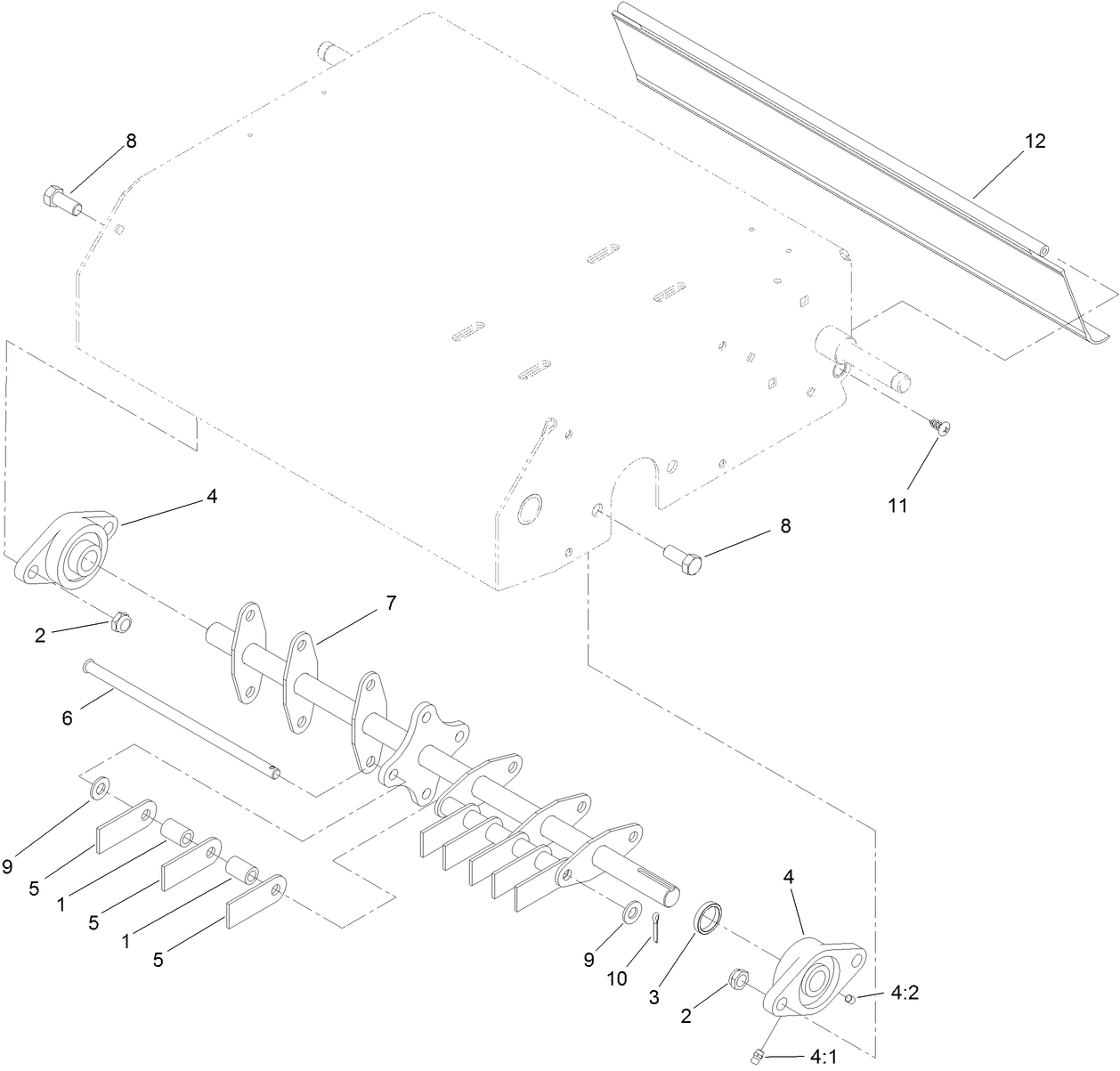

Toro Dethatcher Parts Diagram
Toro Dethatcher Parts
Reference Part Description and
Number Number Quantity
1 125-3870 Spacer x28
2 3296-38 Nut Lock x4
3 116-5805 Collar x1
4 106-7126 Flange Bearing x2
4:1 302-58 Straight Fitting x1
4:2 3245-35 Set Screw x2
5 121-1869 Flail Blade x32
6 121-6208 Satellite Shaft x4
7 121-6220 Rake Shaft x1
8 3212-4 Screw x4
9 3256-24 Washer Flat x8
10 3222-10 Cotter Pin x4
11 117-1092 Screw x2
12 120-6241 Trailing Shield x1
Call 703 919 1379 to get Toro Dethatcher parts shipped to you!
We Can Get Any Toro Dethatcher Part and Ship Them to You. Please Call Everett to Order Parts or for More Information. 703 919 1379
