Astec Trencher Series RT and TF Parts
Call 703 919 5291 to get Astec Trencher parts shipped to you!
We sell and can ship parts for many models of the Astec brand trencher line. Some of the Astec trencher models we sell parts for include the RT 60, RT 130, RT 160, RT 360, RT 460, RT 560, RT 600, RT 660, and TF 300 B as well as others. Call Trey at 703 919 5291 to order parts or to see if we can get parts for your Astec model. Below are parts diagrams for some common Astec trencher parts we sell.

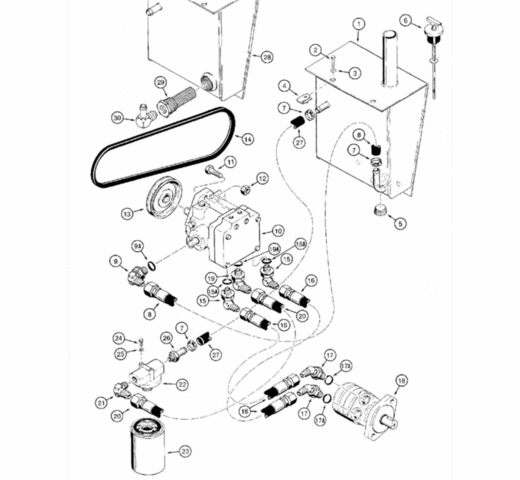

Astec RT 60 Hydraulic Parts Diagram (motor, pump, filter, belt)
Part
Description
Dipstick
Hydraulic Pump ASM
Sheave / Pulley (replaces H437750)
Drive Belt
Hydraulic Drive Motor (replaces H674323)
Hydraulic Filter
Reference Part
Number Number
6 H437958
10 H674324
13 H439405
14 H437738
18 111485A1
23 H311647

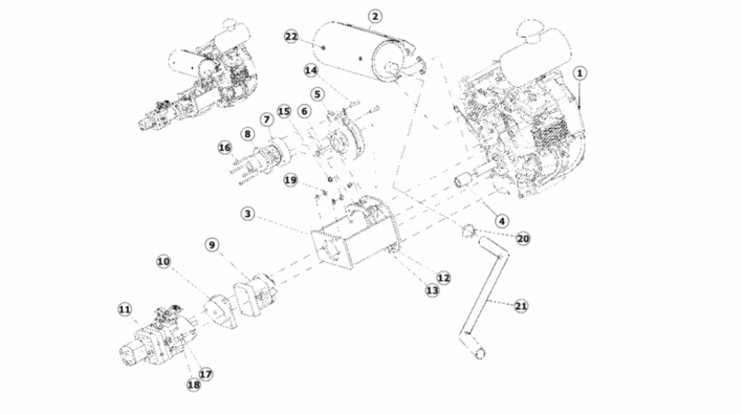

Astec RT 160 Engine and Hydraulic Pump Parts Diagram
Part
Description
Oil Filter
Air Filter
Fuel Filter
Muffler (replaces AU105271)
Electric Clutch
Hydraulic Pump
Hydraulic Pump - Propel
Exhaust Pipe
Reference Part
Number Number
1A AU105439
1B AU105438
1C AU105440
2 AU107329
5 AU104049
9 AU103829
11 AU104564
21 AU107330

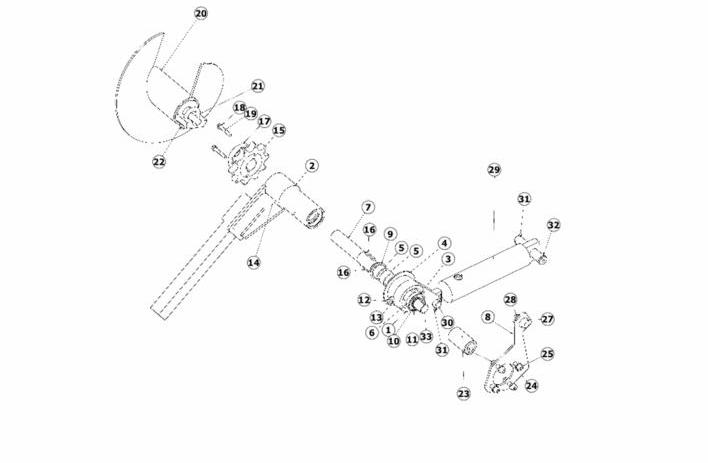

Astec RT 130 Trencher and Auger Parts Diagram
Part
Description
Crank - Boom Cylinder
Assembly Boom Mount
Shaft - Trencher Drive
Sprocket - Split
Auger
Cylinder- Boom Lift
Reference Part
Number Number
1 H413492
2 AU106104
7 AU103525
15 H69773
20 H674456
29 H504076

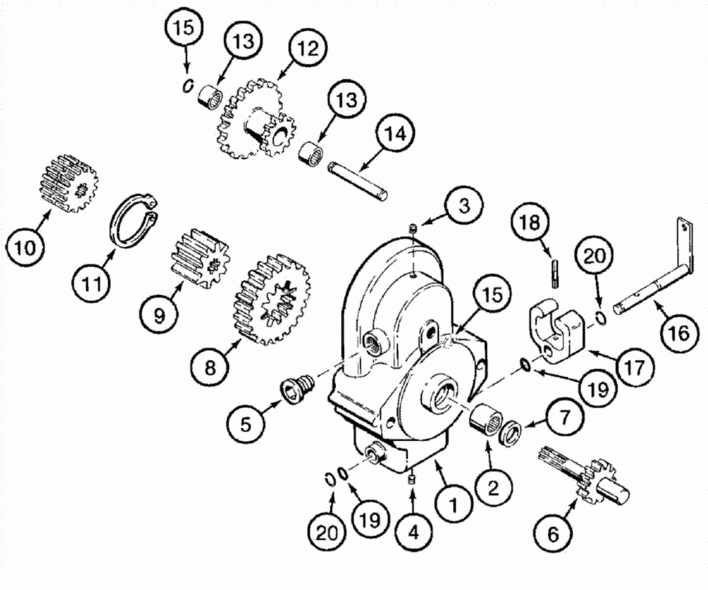

Astec TF 300 B Trencher Transmission Gear Parts Diagram
Part
Description
Transmission / Gear Reduction (includes 1-20)
Bearing - Needle
Gear- Drive
Seal
Bearing - Needle
Shaft
Reference Part
Number Number
* AUH581017
2 H747949
6 H176941
7 H746313
13 H754721
14 H97931
No sales tax charged on Astec trencher parts shipped outside the state of Virginia
We Can Get Astec Trencher Parts and Ship Them To You. Please Call Trey to Order Parts or for More Information
703 919 5291
